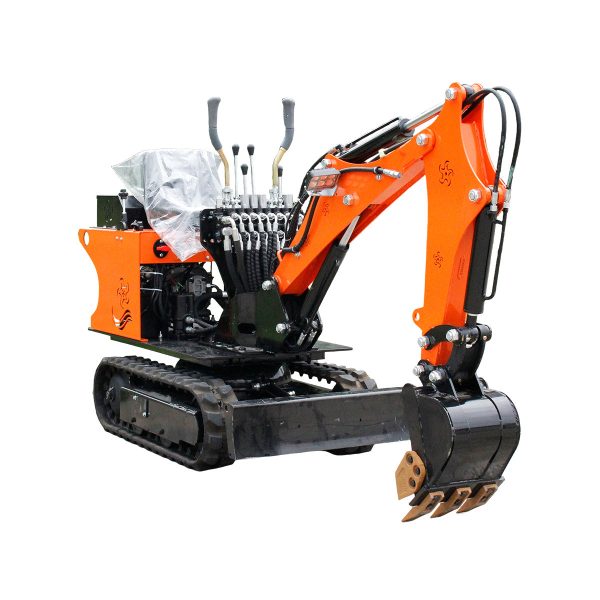

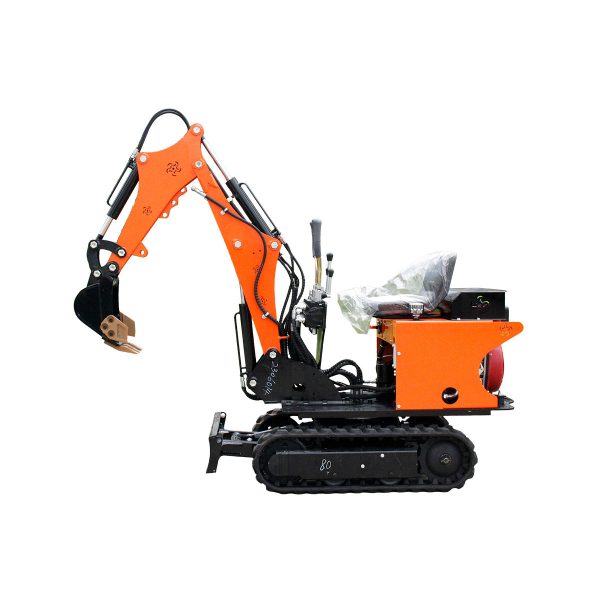

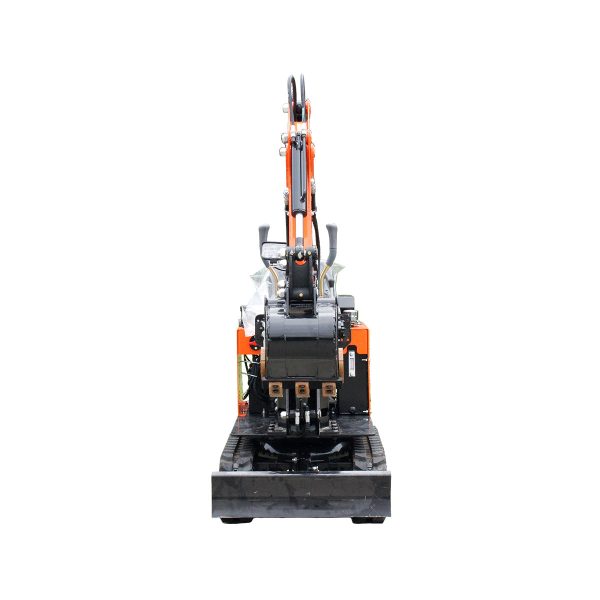

0.7 Ton KV08 Mini Excavator
$13,176,971.00
| Specification | Dimensions (mm) | ||
|---|---|---|---|
| Engine Model | KD192F | Overall length | 2200 |
| Type | Single-cylinder, four-stroke, air-cooled, vertical, direct injection | Customizable chassis telescopic range (mm) |
840-1040 |
| Displacement (L) | 0.499 | Overall height (to top of boom) | 1880 |
| Rated Power (kw/rpm) | 7.6/3000；8.6/3600 | Overall width | 730 |
| Rated working flow (L/min) | 18 | Minimum ground clearance | 80 |
| Bucket digging force(kN) | 11 | Tail swing radius | 1100 |
| Gradability ° | 20 | Wheelbase | 420 |
| Machine weight (kg) | 700 | Standard track shoe width | 150 |
| Bucket capacity (㎥) | 0.02 | Max. digging height | 2350 |
| Fuel tank capacity (L) | 5.5 | Max. dumping height | 1600 |
| Engine oil volume (L) | 1.65 | Max. digging depth | 1200 |
| Hydraulic oil tank capacity (L) | 12 | Max. digging radius on ground | 2050 |
| Size (mm) | 2050*730*1900 | Chassis width (mm) | 730 |
| Swing arm angle | 60° left and right | Ground length (transportation) | 2200 |
| Hydraulic pump | Made in Japan | Track width (mm) | 420 |
| Working device type | Backhoe | Multi-way Valve | Made in Italy |
