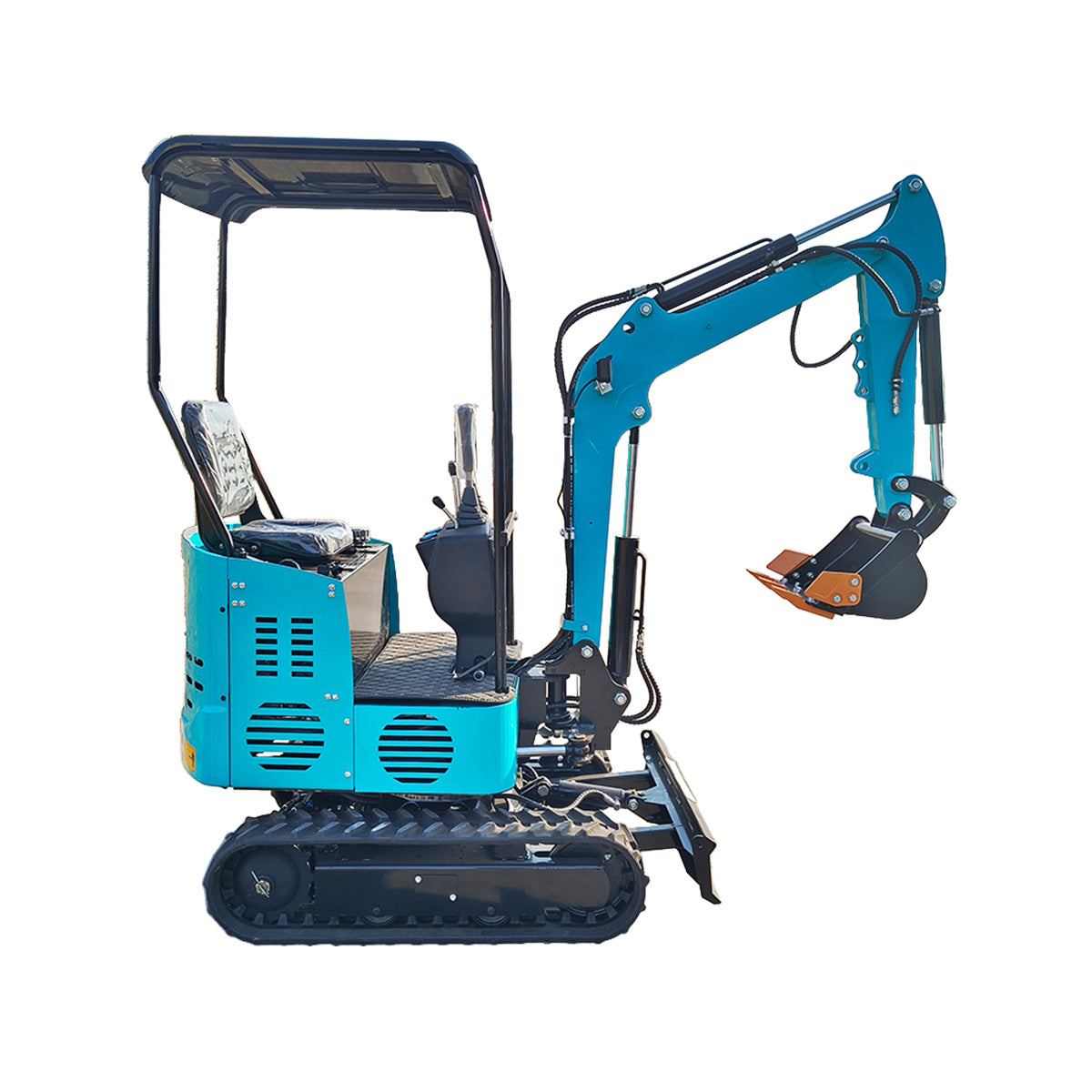

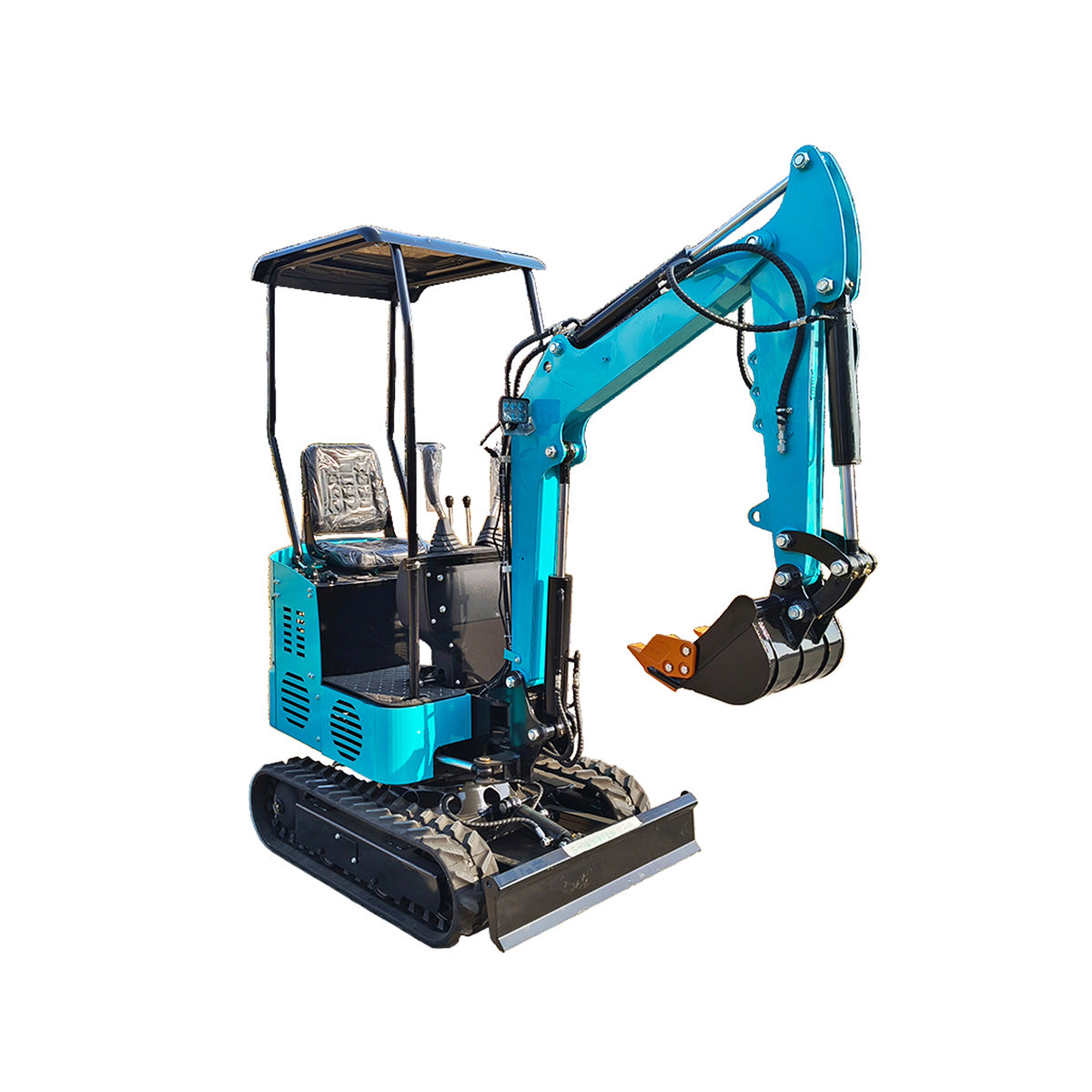

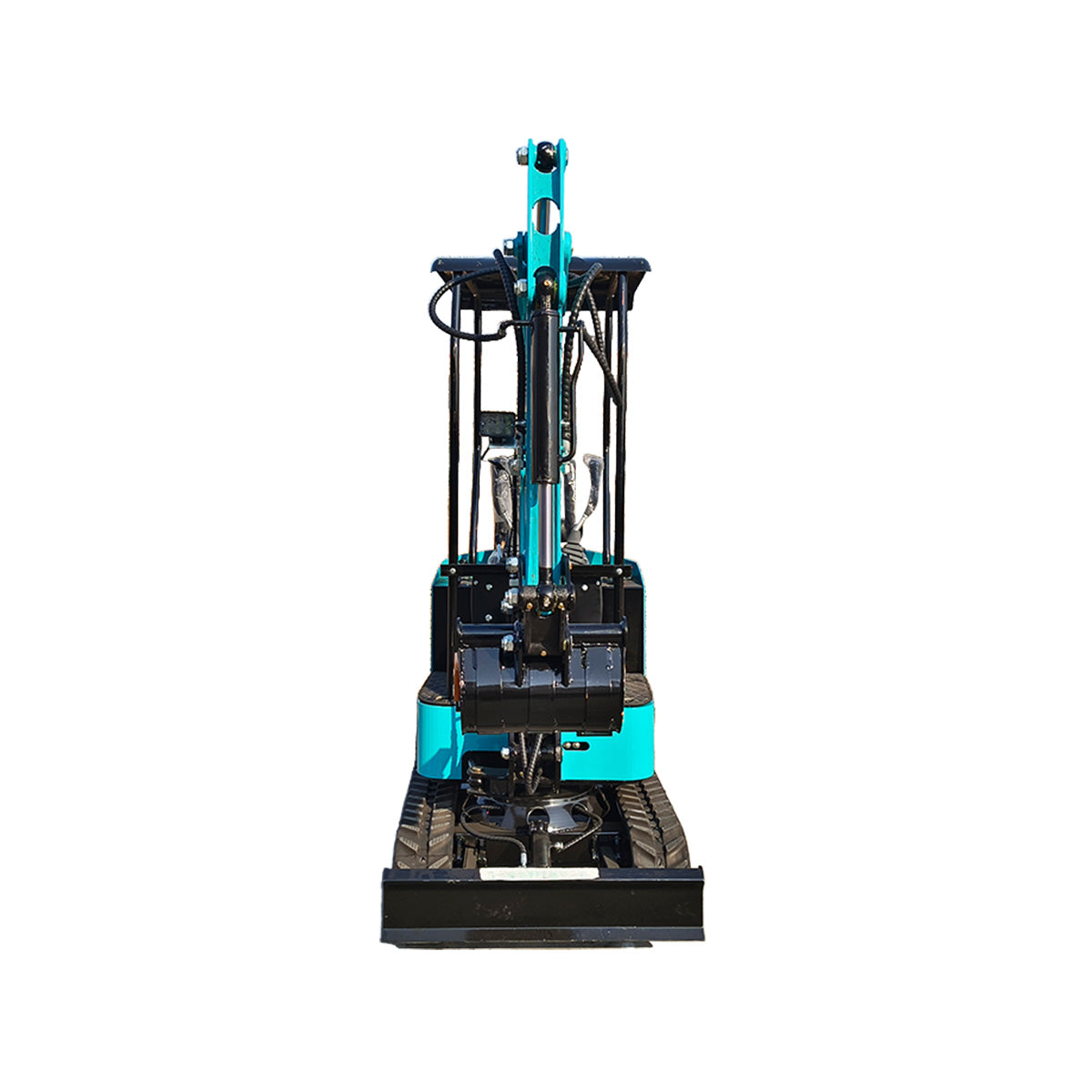

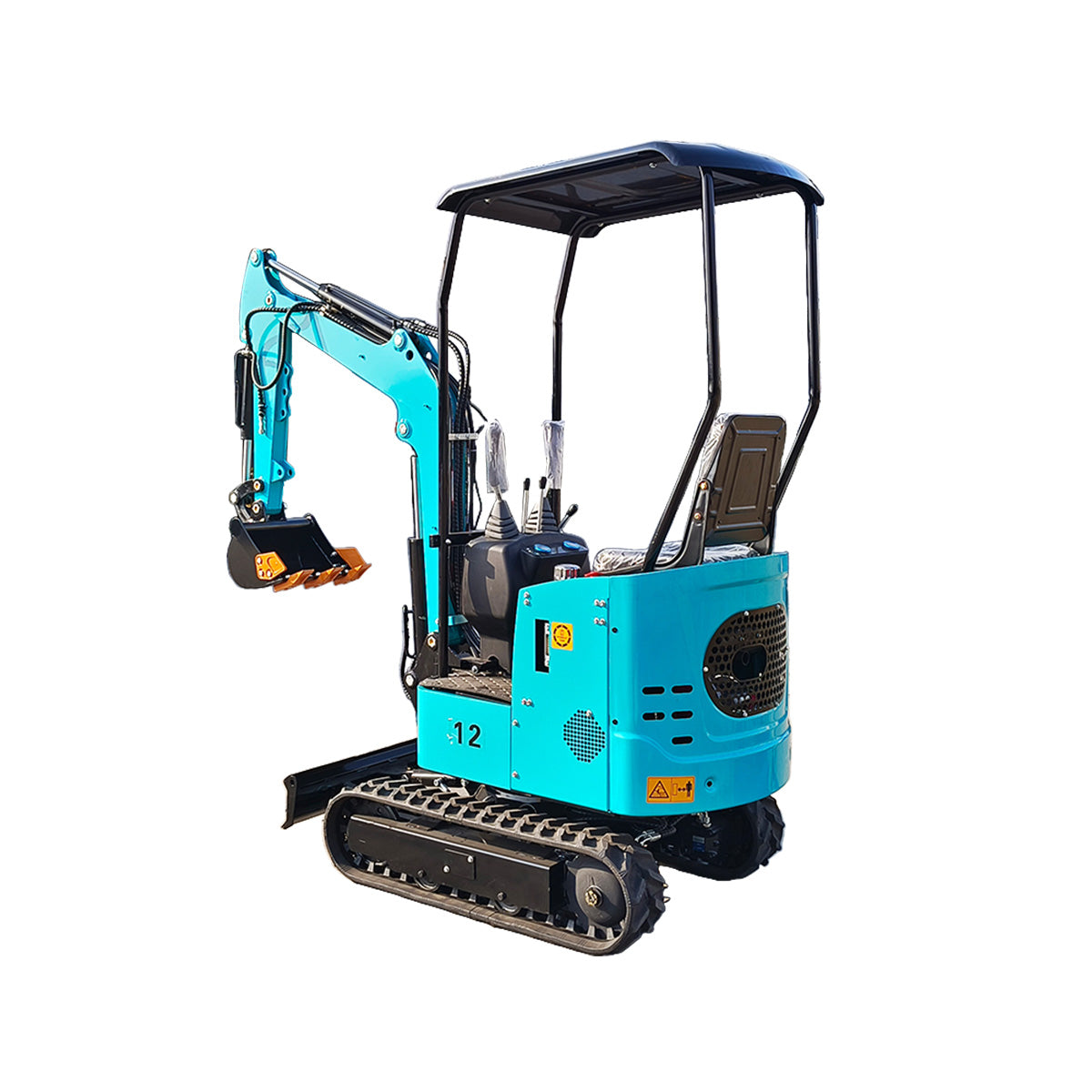

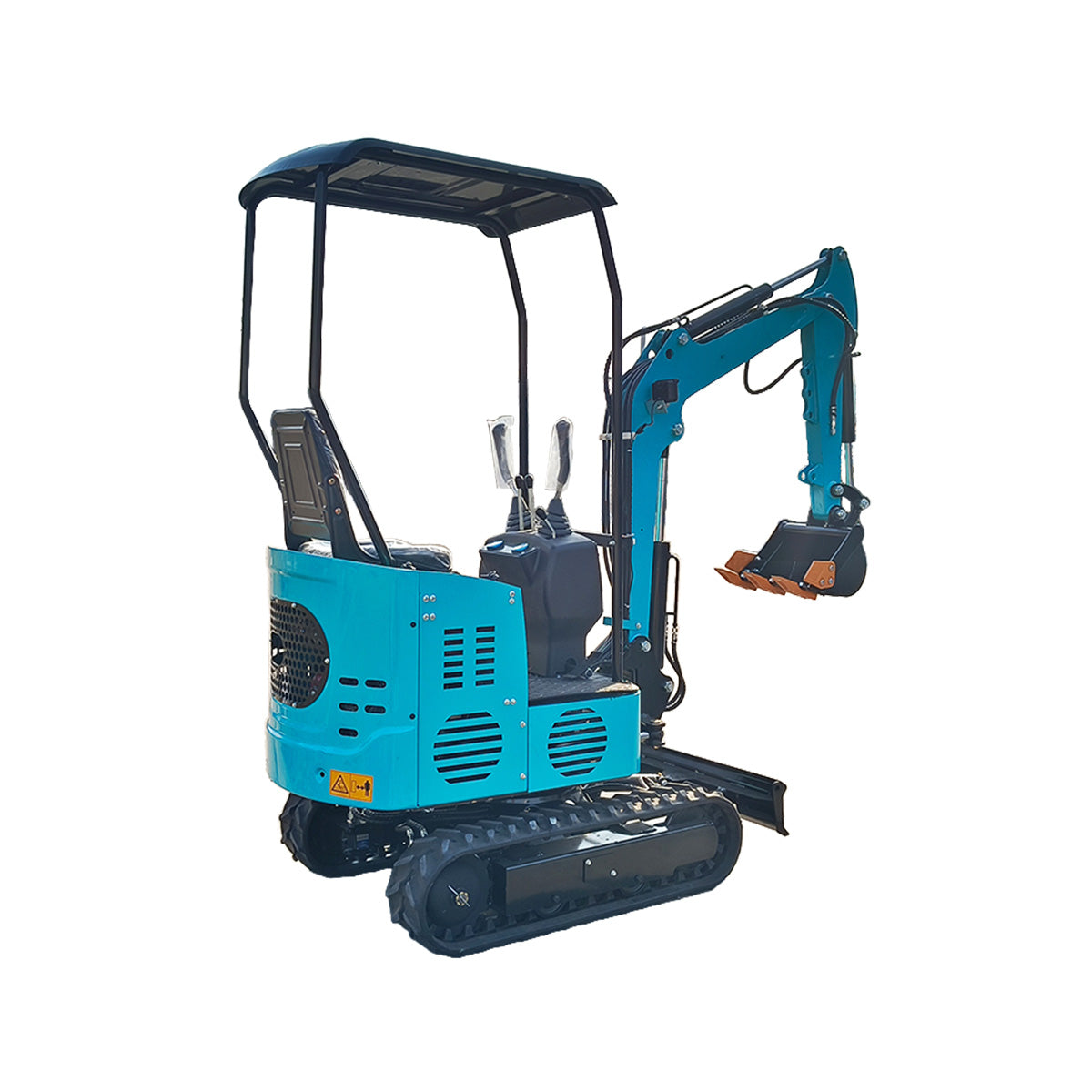

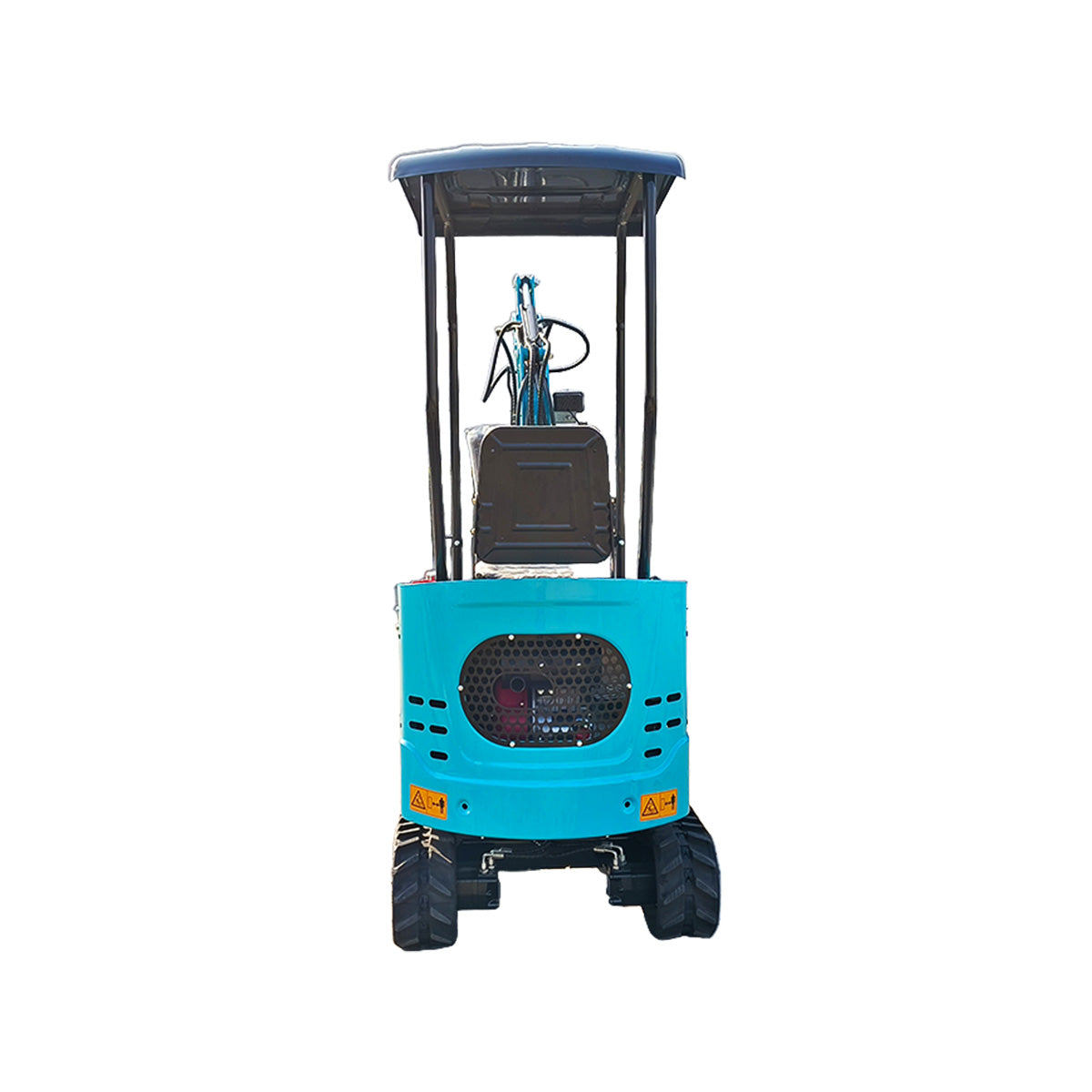

1 Ton KV12 Mini Excavator with Diesel Engine
$13,172,993.00
| Specification | Dimensions (mm) | ||
|---|---|---|---|
| Engine Model | KD192F/FE | Overall length | 2170 |
| Type | Single cylinder, four-stroke, air-cooled | Ground length (transportation) | 2170 |
| Displacement (L) | 0.499 | Overall height (to top of boom) | 2200 |
| Rated Power (kw/rpm) | 7.6/3000; 8.6/3600 | Overall width | 940 |
| Machine weight (kg) | 900 | Counterweight ground clearance | 385 |
| Bucket capacity (㎥) | 0.03 | Tail swing radius | 1550 |
| Fuel tank capacity (L) | 5.5 | Wheelbase | 420 |
| Engine oil volume (L) | 1.65 | Standard track shoe width | 180 |
| Size (mm) | 2200*930*2200 | Max. digging height | 2600 |
| Swing arm angle | 60° left and right | Max. dumping height | 1850 |
| Chassis width (mm) | 730 | Max. digging depth | 1600 |
| Customizable chassis telescopic range (mm) |
830-1030 | Max. digging radius on ground | 2900 |
| Customizable Cab | Cab and heating system | Working device type | Backhoe |
