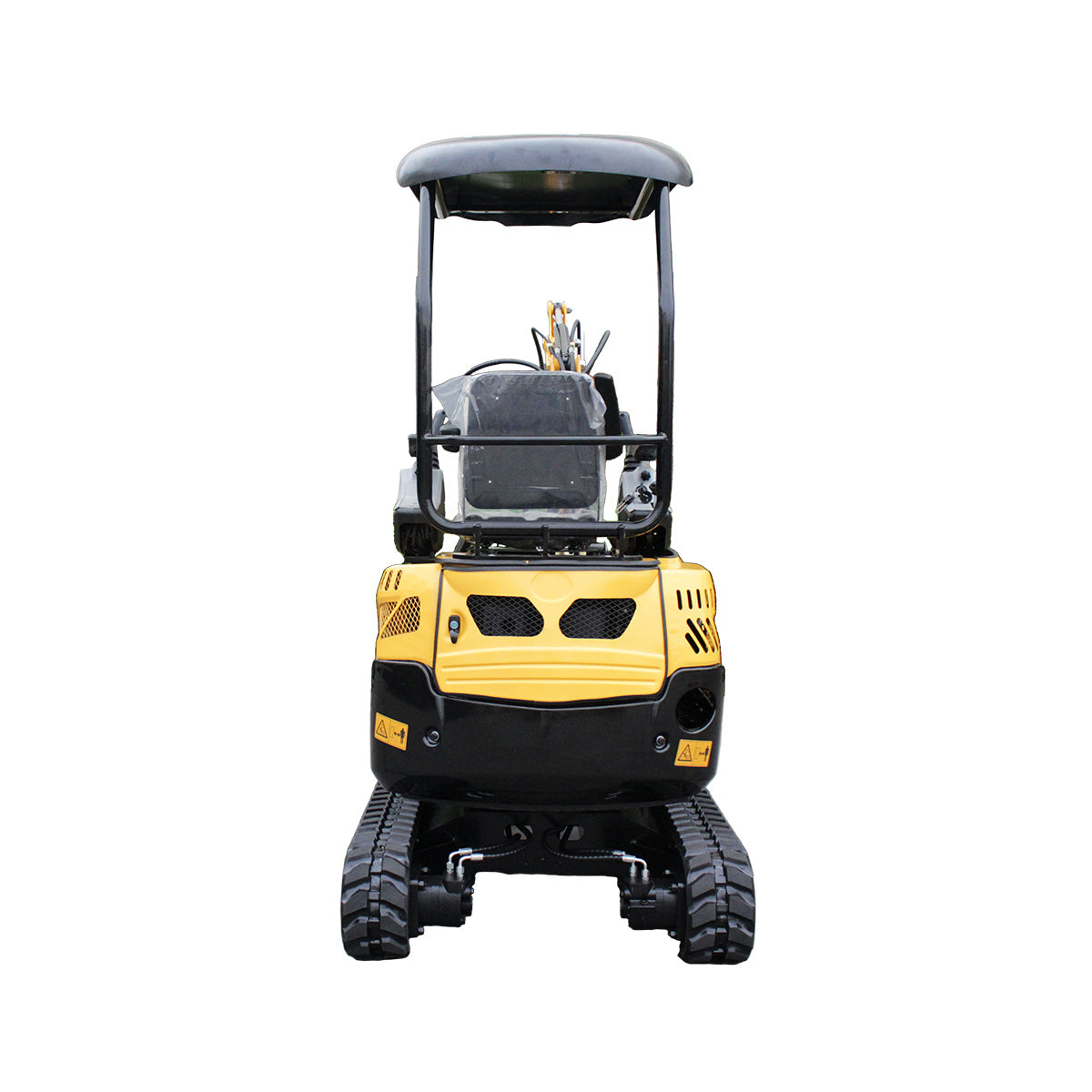

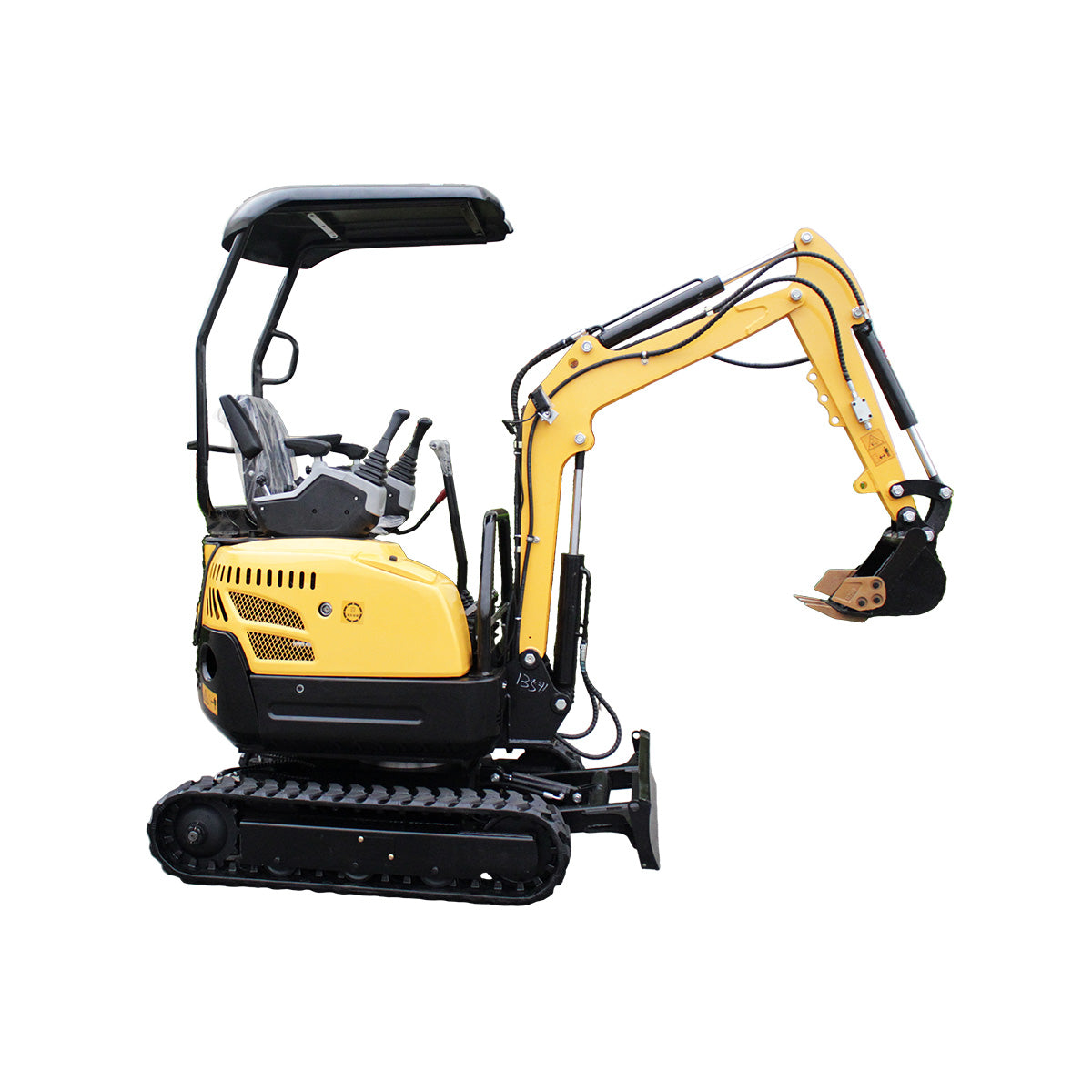

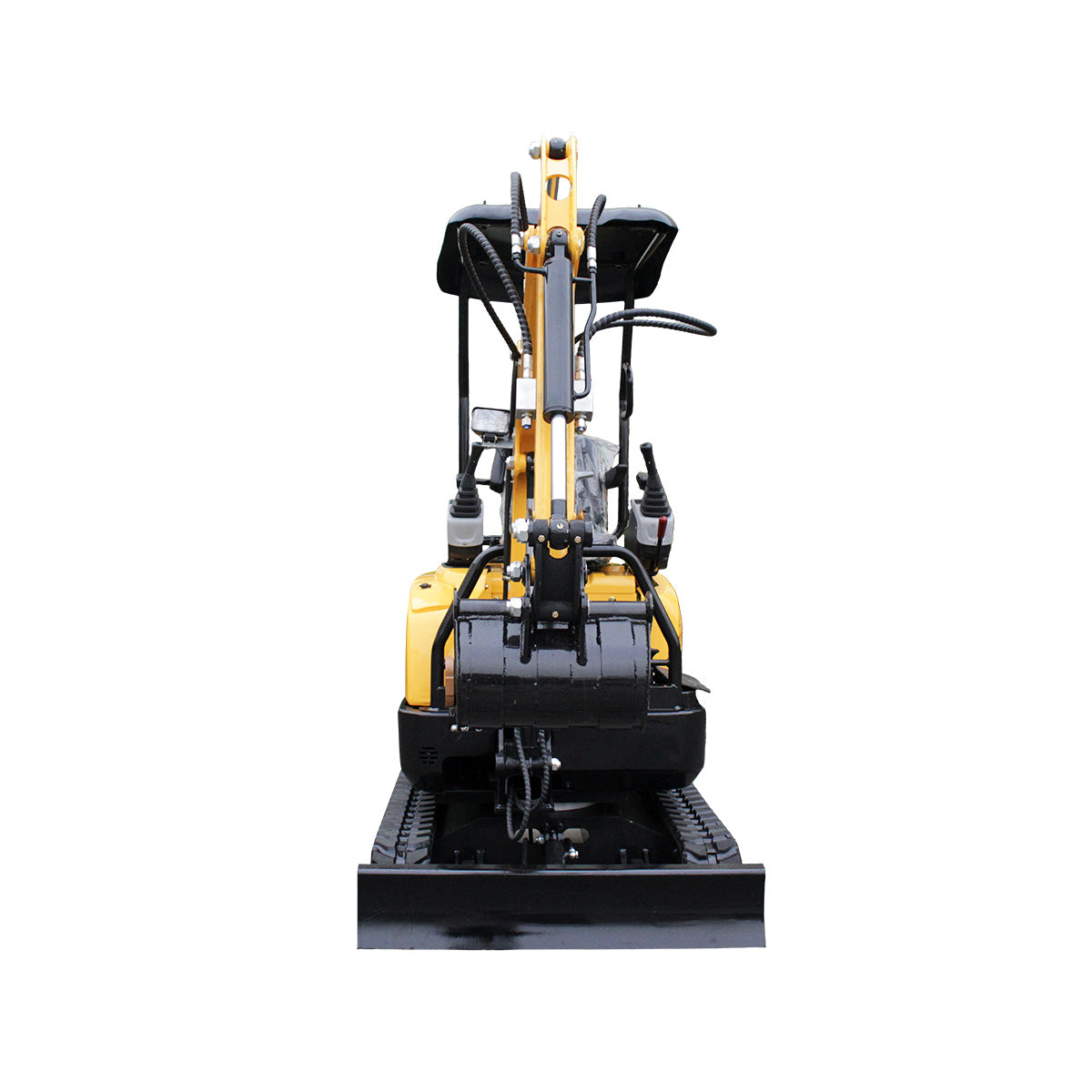

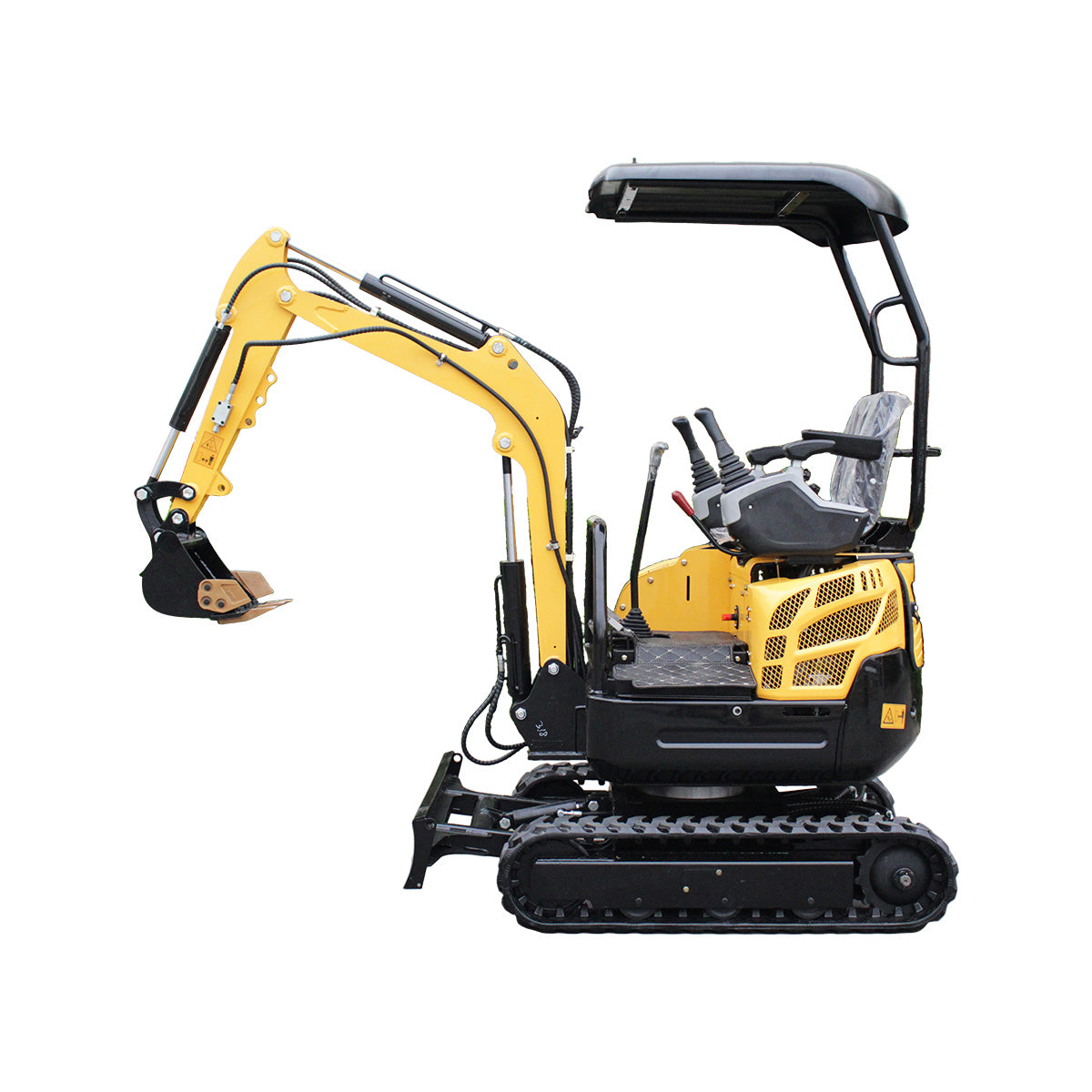

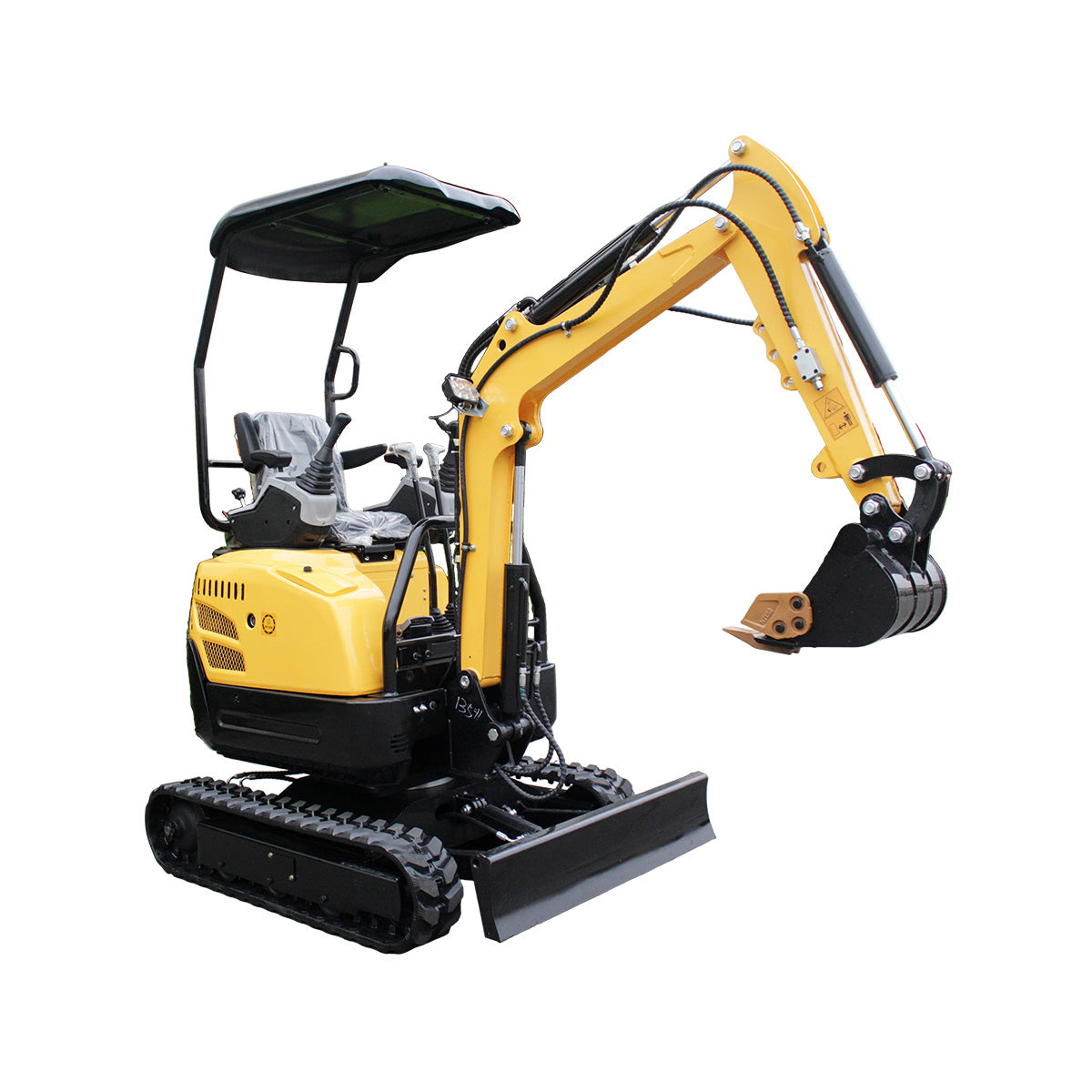

1.1 Ton KV13 Plus Mini Excavator with Diesel Engine
$13,172,993.00
| Specification | Dimensions (mm) | ||
|---|---|---|---|
| Engine Model | Huaruipu 192 | Overall length | 2200 |
| Type | Single-cylinder | Overall height (to top of boom) | 2230 |
| Displacement (L) | 0.498 | Overall width | 1100 |
| Rated Power (kw/rpm) | 8.8-10.3/3600 | Tail swing radius | 1636 |
| Type | Dual-pump | Max. digging height | 2545 |
| Machine weight (kg) | 1000 | Max. dumping height | 1708 |
| Bucket capacity (㎥) | 0.03 | Max. digging depth | 1735 |
| Track width (mm) | 923 | Max. digging radius on ground | 3280 |
| Working device type | Backhoe | Size (mm) | 2200*1100*2230 |
| Hydraulic pump | Import | Transport length (mm) | 2400 |
| Motor | Eaton travel motor | Configuration | LCD instrument panel |
| Roof | Standard two-leg roof | Multi-way Valve | Load sensing valve |
